Comprehensive And Intuitive Shaft Alignment Utilizing Tablets And Smart Phones

Overview

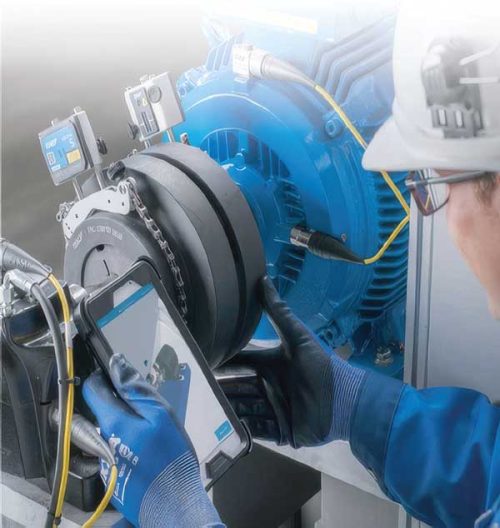

Our TKSA-51 Shaft Alignment Tool provides high measurement flexibility and performance suitable for entry-level to expert alignment jobs. Designed to work with the VibePro shaft alignment apps on a tablet or smart phone, this intuitive tool is easy to use and requires no special training.

The included accessories enable use of the GTI-51 for a wide range of alignment applications with horizontal and vertical shafts, such as motors, drives, fans, pumps, gearboxes and more. The apps include tutorial videos to show operators how to perform accurate measurements.

Shaft Laser Alignment Features:

Measurement flexibility – The well-known, three-position measurement gains additional flexibility as measurements can start at any angle and require a total minimal rotation of only 40 degrees. This enables operators to perform alignments of applications with limited space.
Automatic reports – Alignment reports are generated automatically and can be customized with notes, a machine picture and a signature via touchscreen. The reports can be easily exported as PDF files and shared with other mobile apps.
Comprehensive and compact – A range of included components, such as magnetic mounting brackets and extension rods and chains, increase the TKSA-51’s versatility, yet it remains compact, lightweight and easy to carry.
3-D live view – This feature enables intuitive positioning of the heads for quick alignment measurements and displays the horizontal and vertical alignment correction live. The apps enable 3-D rotation of the virtual motor to correspond with the actual machine position view.
Disturbance compensation – Measurement values are averaged over time to provide greater accuracy in presence of external disturbances.
Also available as TKSA-51D with rugged, industrial display device and pre-installed apps included.

Alignment Applications

The TKSA-51 uses dedicated apps for alignments of horizontal and vertical shaft and the correction of soft foot. The apps are icon-driven and very easy to use. All apps are free of charge and features a fully functional

Technical Data

Sensors and communication: 20 mm (0.8 in.) PSD with line laser Class 2 ; Inclinometer ±0.1°; Bluetooth 4.0 LE
System measuring distance: 0,07 to 5 m (0.23 to 16.4ft)
Measuring errors: <1% ±10 μmE
Housing material: Anodized aluminum front and PC/ABS plastic back cover
Operating time: Up to 8 hours, rechargeable Li-ion battery, fast charging, 10 min. charging for 1h usage
Dimensions: 52 × 64 × 50 mm (2.1 × 2.5 × 2 in.)
Weight: 190 g (0.4 lbs)
Operating device: VibePro DISPLAY, Galaxy Tab Active and iPad Mini recommended, iPod Touch 5th generation, Galaxy S4 or above
Software/App update: Apple AppStore or on Google Play store
Operating system requirements: Apple iOS 9 or Android OS 4.4.2 (and above)
Alignment method: Alignment of horizontal and vertical shafts,3 position measurement 9 -12 -3, automatic measurement (with min. 40° rotation), soft foot
Live correction values Extra: Vertical and horizontal Machine library, QR code reading, target values, disturbance compensation,
3D machine free view, screen rotation on tablets, automatic .pdf report
Fixture: 2 × V-brackets with chains, width 15 mm (0.6 in.)
Shaft diameters: 20 to 150 mm diameter (0.8 to 5.9 in.), 450 mm (17.7 in.) with extension chains (included)
Max. coupling height (1): 45 mm (1.8 in.) with standard rods plus 120 mm (4.7 in.) per set of extension rods
Power adapter: Charging via micro USB port (5V) Micro USB to USB split charging cable supplied Compatible with 5V USB chargers (not included)
Operating temperature: 0 to 45 °C (32 to 113 °F)
IP rating: IP 54
Carrying case dimensions: 355 × 250 × 110 mm (14 × 9.8 × 4.3 in.)
Total weight (incl. case): T2,9 kg (6.4 lb)
Calibration certificate: Supplied with 2 years validity
Case content: 2 measuring units (M&S); 2 shaft brackets with chains 480 mm (18.9 in.), threaded rods 80 mm (3.2 in.) and magnets; 4 threaded extension rods 120 mm (4.7 in.); 2 extension chains 980 mm (38.6 in.); micro USB to USB split charging cable; measuring tape;
printed certificate of calibration and conformance; quick start guide (EN); SKF carrying case; A4 sheet with 12 × QR code stickers

(1) Depending on the coupling, the brackets can be mounted on the coupling, reducing the coupling height limitation.
